+ Digital Conference System

Accwssories

SCS-E1/E2:
.Working with speaking units or IR receiver units
.Avoid being interfered in conference
.Build-in 1.5 meter cable
.Hi-fi audio quality

SPECIFICATIONS:

Model	SCS-E1	SCS-E2
Interface	3.5mm mono connector	3.5mm mono connector
Frequency response	80Hz 2KHz	80Hz 2KHz
Sensitivity	90dB	90dB
SNR	>80dB	>80dB
Distortion	<0.1dB	<0.1dB
Impedance	32Ω	32Ω
Dynamic range	>85dB	>85dB
Output power	80mW	80mW

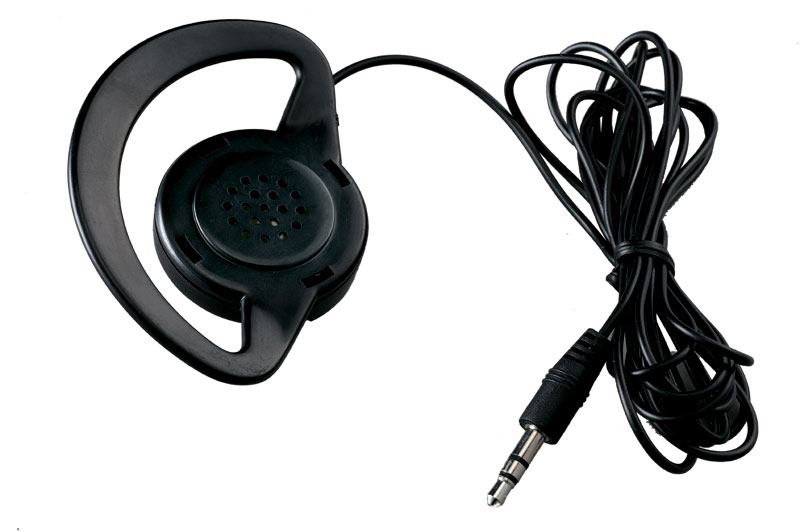

SCS-E1

zoom

SCS-E2

zoom

SCS-E3 Head set earphone for SCS360R feater

SCS-E3
.Working with interpreter units or IR receiver units
.Avoid being interfered in conference
.Build-in 1.5 meter cable
.Hi-fi audio quality

SCS-E3

zoom

SPECIFICATIONS:

Model	SCS-E3
Interface	3.5mm mono connector
Frequency response	80Hz 2KHz
Sensitivity	90dB
SNR	>80dB
Distortion	<0.1dB
Impedance	32Ω
Dynamic range	>85dB
Output power	80mW

FEATURES:

.Working with interpreter units or IR receiver units
.Avoid being interfered in conference
.Build-in 1.5 meter cable
.Hi-fi audio quality

SPECIFICATIONS:

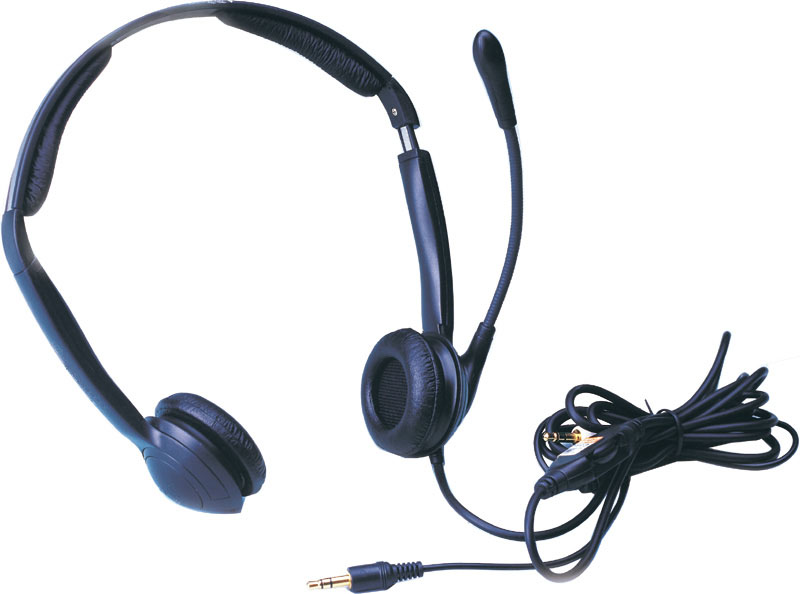

SCS-E4

zoom

Earphone	Interface	3.5mm stereo connector
	Frequency	80Hz 2KHz
	Sensitivity	90dB
	SNR	>80dB
	Distortion	<0.1dB
	Impedance	32Ω
	Dynamic	>85dB
	Output power	100mW
Microphone	Transducer type	Electret condenser
	Output impedance	600Ω
	Frequency response	60Hz 8KHz
	Pickup distance	20-200cm
	Connection	Unbalanced
	Sensitivity	22dB3dB
	Directional pattern	Cardioid

Extention cables feater:

.Connection between SCS-6100M & SCS-5100M

.Two 8P 262 DIN plug(x1) and socket(x1)

.5M/10M/20M

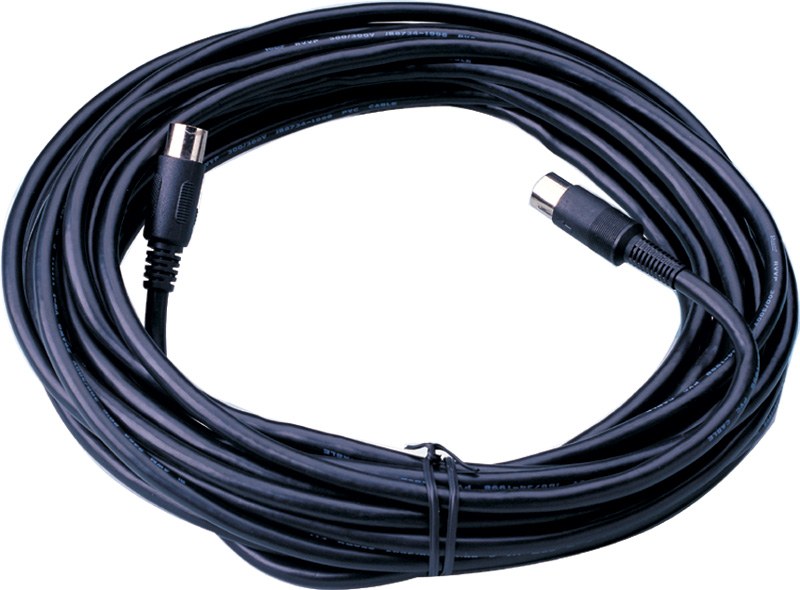

8Pin cable

zoom

Freight case:

In order to convenience shipping and preservation before and after the meeting , Samcen offer the professional integrate system Freight Case to packing our system. Which have many optional, such as:

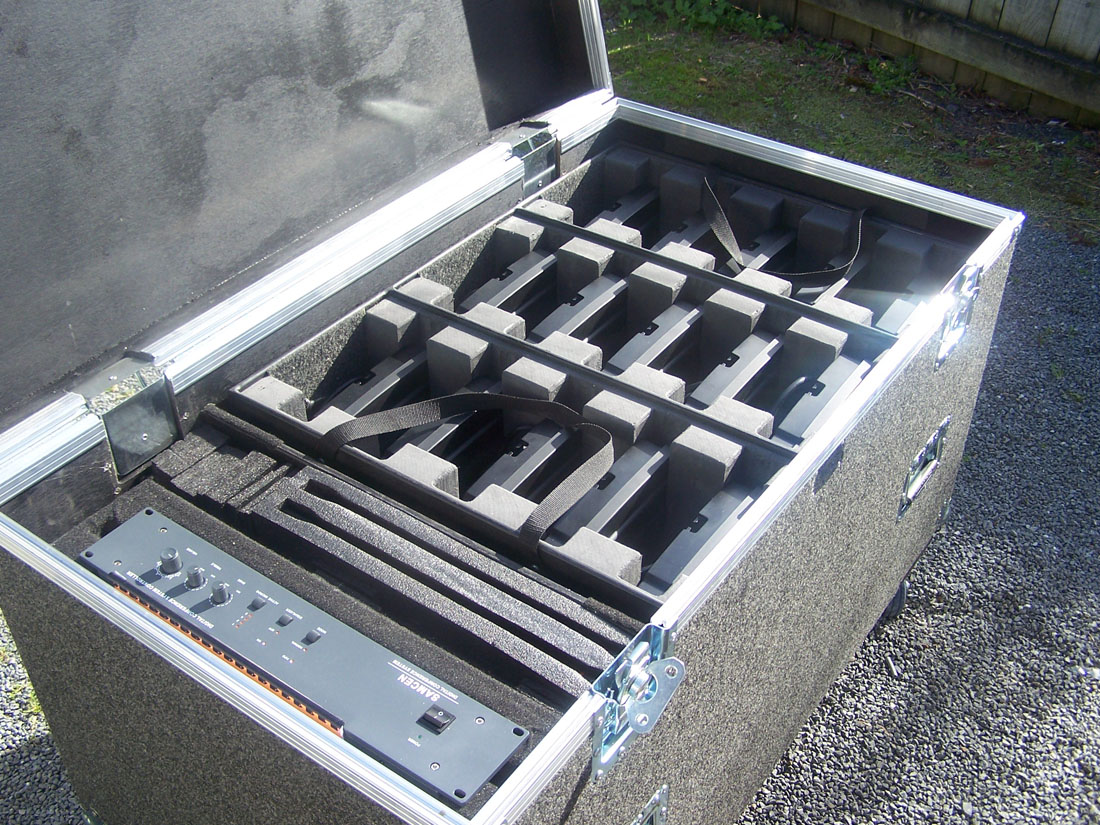

Inside

zoom

1 controller + 20 delegats+ gooseneck + cables and accessory,
1 controller + 30 delegats+ gooseneck + cables and accessory,

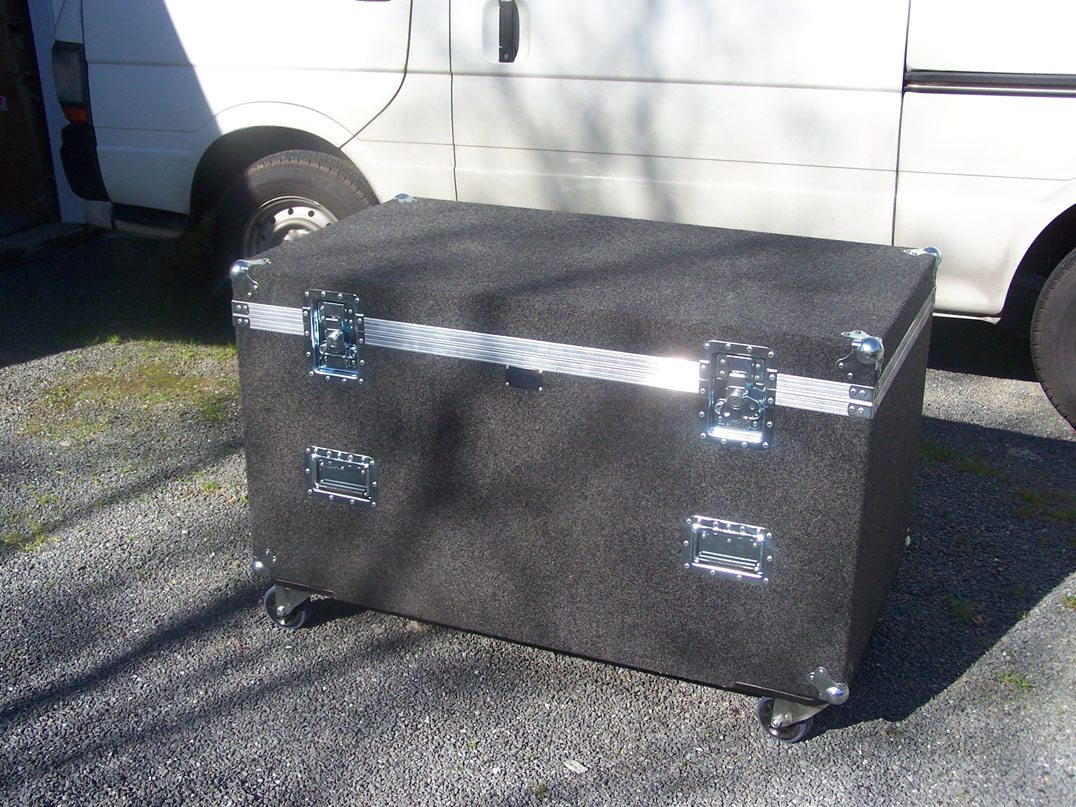

The photos of freight as below.

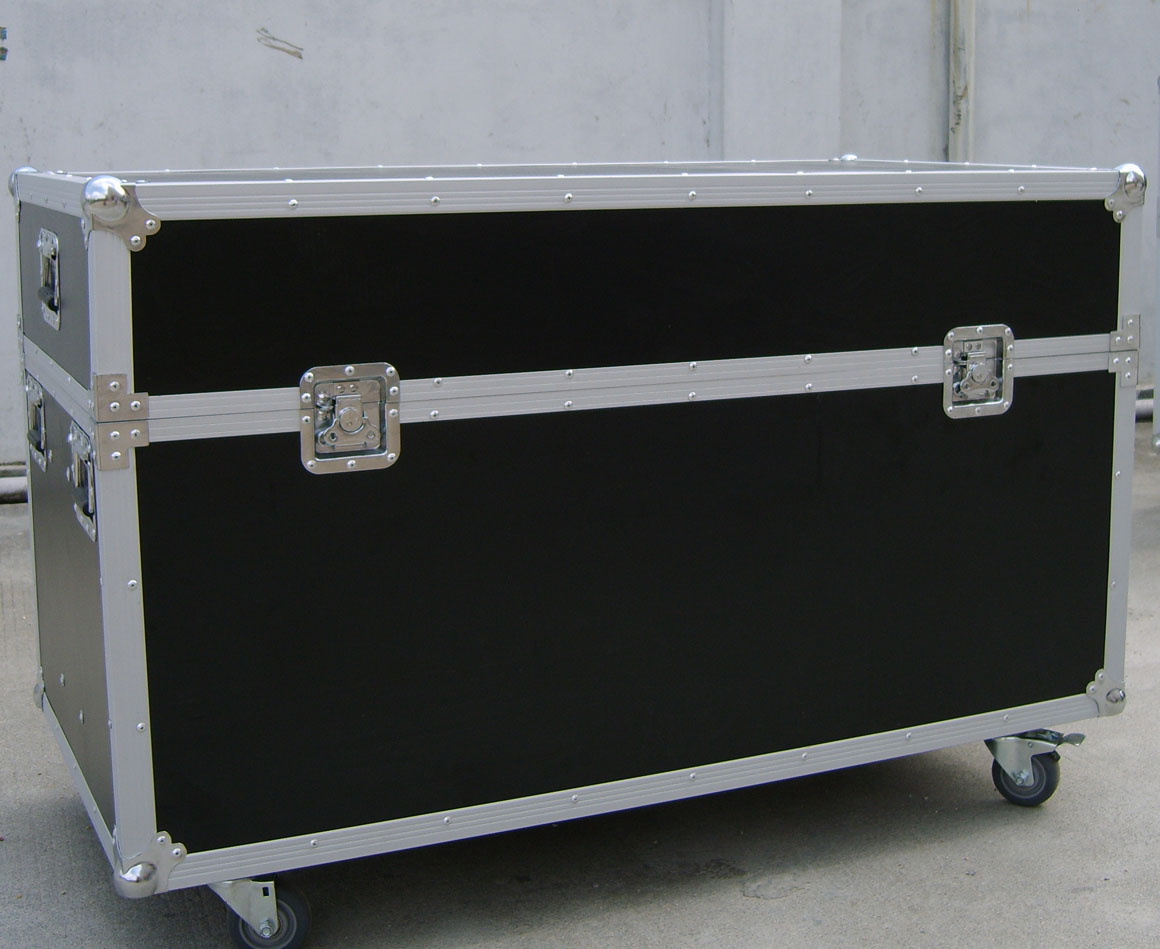

SCS-451/30	SCS-452/30
