Wireless Language Distribution System
|
¡¡ |
| ¡¡ |

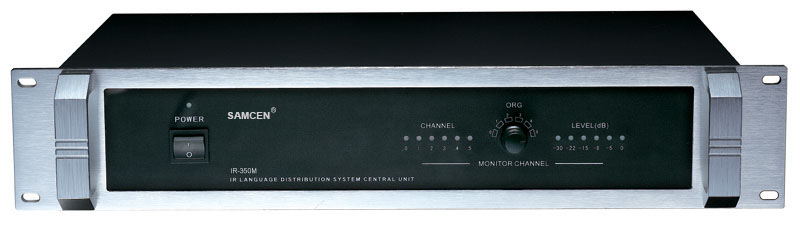

SCS-350M IR language transmitter main unit feater:
.Wireless directional transmission avoided the radio disturbance and wiretapping.
.Automatic Level Control.(ALC)
.Adopt high frequency( 2M-6MHz) transmission it ensure anti-jamming frequency.
.Adopt phase-locked loop (PLL) technique to achieve stabile transmitting frequency.
.Equipped with 32 input audio connectors, it is able to input external audio signals.
.Equipped with 32 output audio connectors, it is able to output audio signals to different audio devices like amplifier and audio recorder.
.The test function can create 6 various frequency audio signals for system test.
.Level indicators can monitor the intensity of the input audio level directly.
.Alarm function can automatically send out the warning message to all the audio channels.
.Cover with metal material and earth well to ensure the 8000V antistatic performance. |
|
SPECIFICATIONS: |
Model |
SCS-350M IR Transmitter Unit |
Power supply |
100-240V |
Power consumption |
15W |
Crystal |
Crystal control |
Modulation |
PPL, narrow band |
Carrier wave frequency |
2M20MHz (BAND4) |
Pre-emphasis |
100¦Ìs |
Deviation |
¡À6kHz (peak value ¡À7kHz) |
Total harmonic distortion |
<1% |
SNR |
>80dB |
Frequency response |
6012KHz |
Input Sensitivity |
50mV-1.5V |
RF output |
2 BNC,100mV RMS |
RF output impedance |
50¦¸ |
Dimension |
430L¡Á275W¡Á90H(mm) |
Weight |
6.8KG |
Color |
Gray |
|
Brochure
¡¡ |
¡¡ |

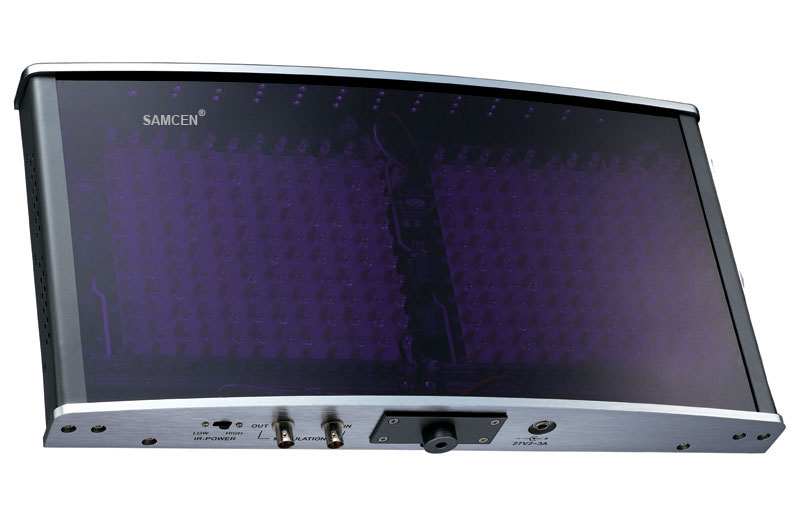

SCS-350T15/25 IR Radiator feater: |
.Powerful
ability of IR radiation (30 meters)
.Synchronized with the transmitter host.Adjustable
IR radiation (15W)
.Communicating
in the hand in hand daisy-chain. It is easy to install and maintain.
.Easy
installation with free attachable bracket or triangle bracket.
.Half
radiator angle:¡À22¡ã |
|
| SPECIFICATIONS: |
¡¡ |
Model |
SCS-350T IR Radiator Unit |
Power supply |
AC100-240V |
Transmit power |
15W/25W/40W
(selectable) |
Average transmit angle |
¡À22¡ã |
RF input |
Impedance
:5k¦¸,voitage:150mV-3V |
Maximum covered
distance |
30M(15W) |
Automatically opened
threshold |
50mV RF signal |
Dimension |
430L¡Á320W¡Á95H(mm) |
Weight |
7.8KG |
Color |
Purple |
|
¡¡ |
The more optional transmit power as below: |
 |
 |
¡¡ |
| SCS-350T/25 |
SCS-350T/40 |
|
| ¡¡ |

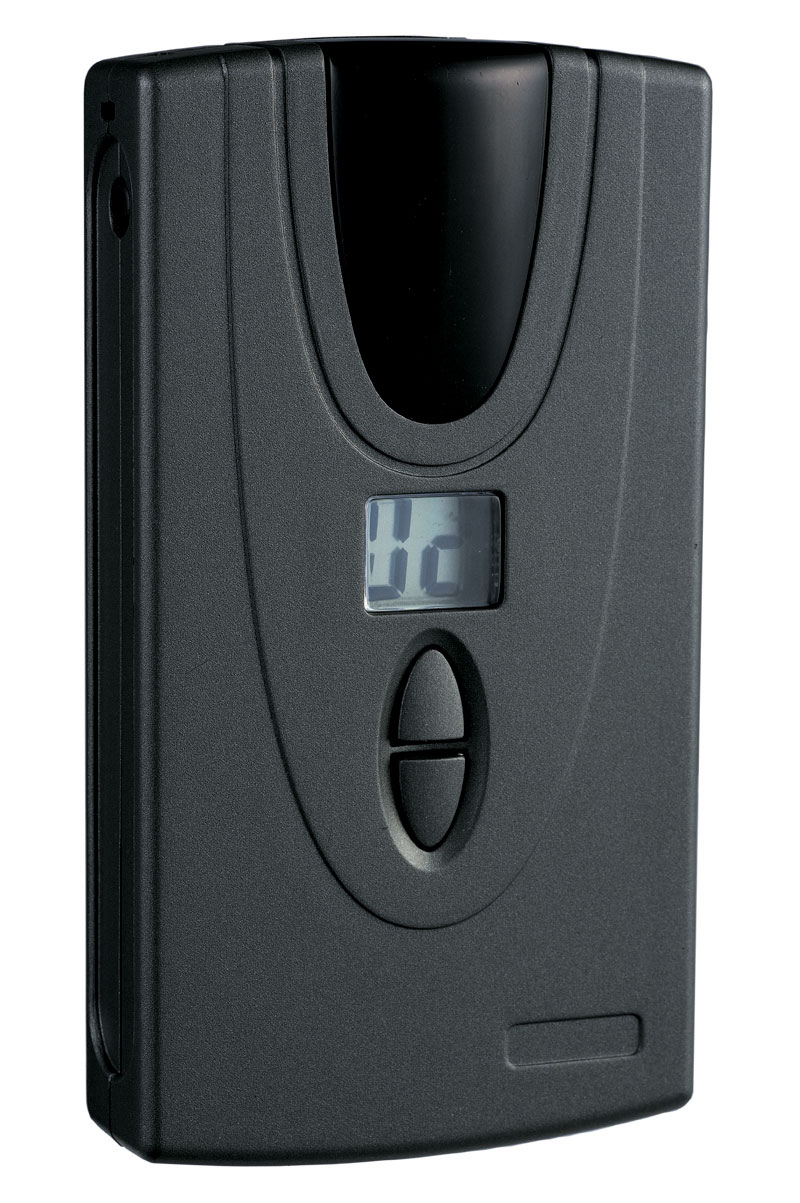

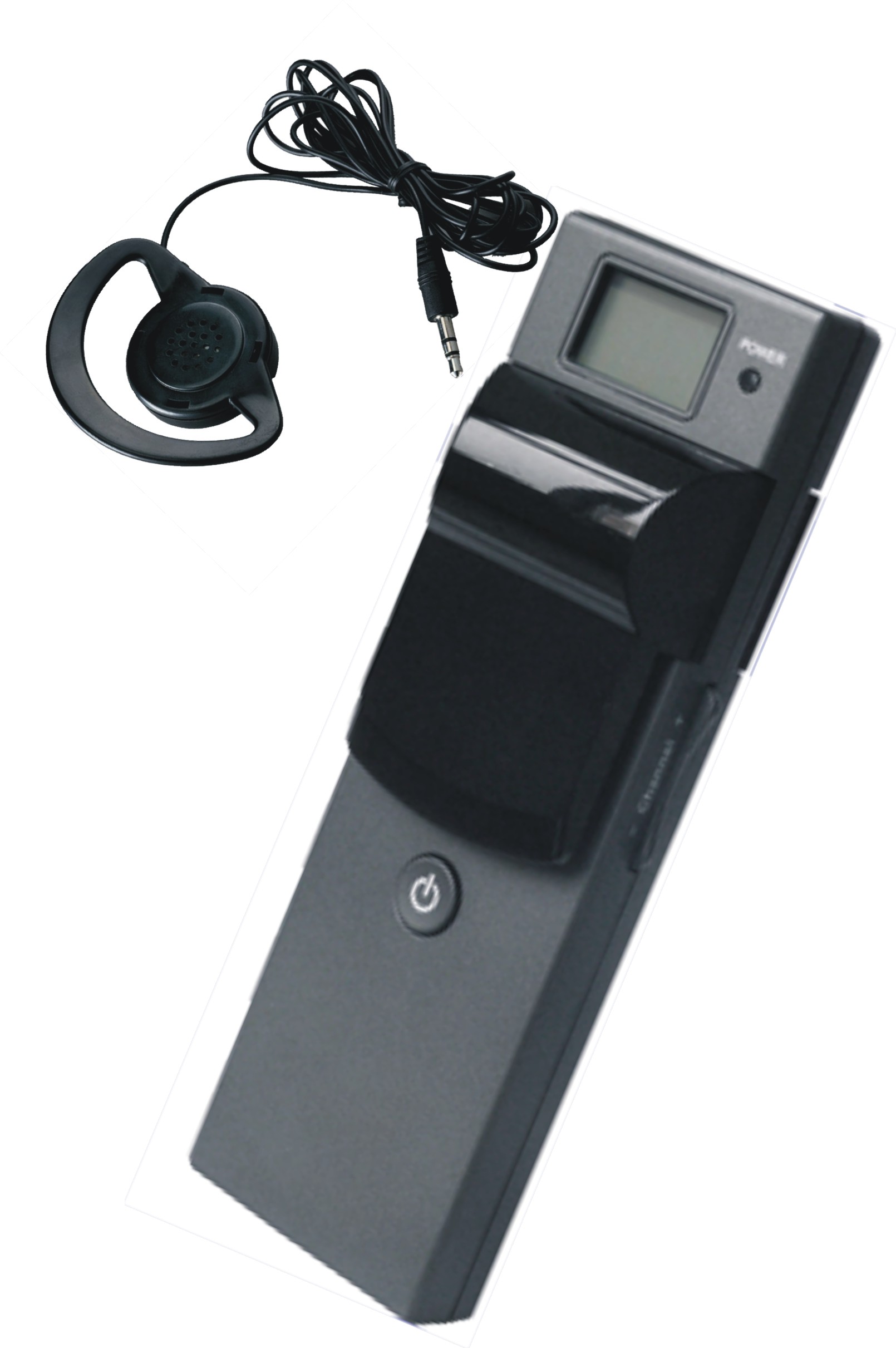

SCS-360R/08/12/32 IR Receiver feather: |
.Gorgeous appearance.
.Comfortable to use earphone.
.Adopt MCU, makes it stronger.
.Adopt high-tech phase locking chip to make the precision higher.
.Adopt more advanced phase locking technology to make the speed faster and more stable.
.Adopt special noise elimination technology to make the noise lower.
.8/12/32 channel option, there is no obstruction between the channels.
.During the effectual area, the receiving unit can be added unlimited.
.Volume adjustable.
.Phase locking technology, receive frequency with 10PPM stability.
|
|
SPECIFICATIONS:
Model |
SCS-360R 8/12/32 IR Receiver Unit |
Power supply |
Embedded lithium battery 3.7V/750mA |
Intermediate frequency(IF) |
10.7MHz |
S/N |
>80dB |
Rating frequency difference |
¡À6kHz |
Signal restoration |
150ms |
Frequency effect |
8Khz |
Modulation |
FM |
Receiving power |
2M-8MHz |
Peak value difference |
¡À8KHz |
Total Harmonic distortion |
<1% |
Am inhabited |
>45dB |
Distortion |
<1.5% |
Dimension |
105L¡Á50W¡Á19H(mm) |
Weight |
0.15KG |
Color |
Gray |
|

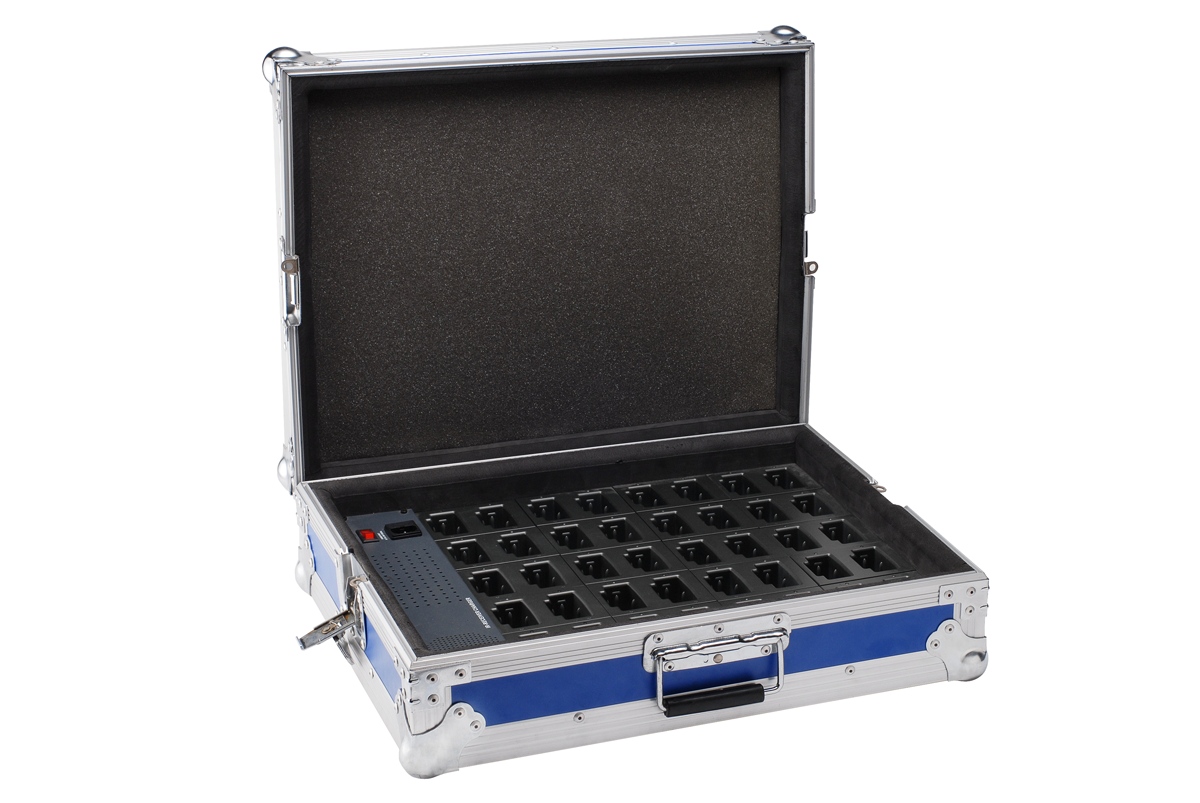

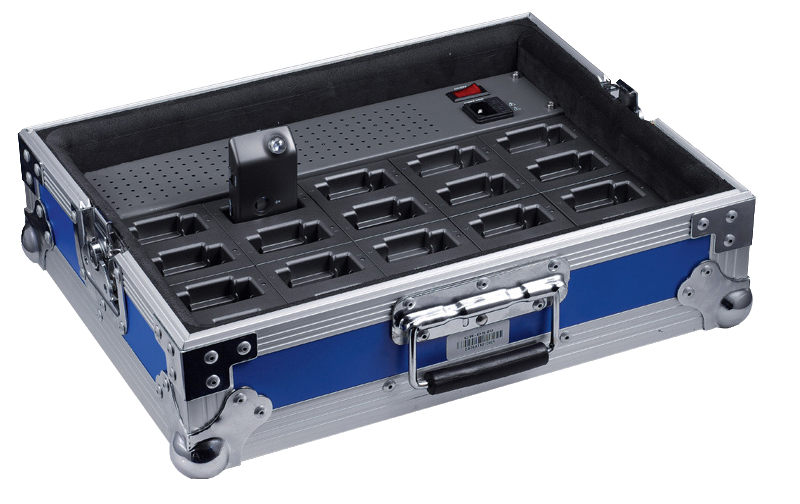

| SCS-350C/20/40 feather: |
¡¡ |
.Charger base for SCS-350C/2 Receiver.
.SCS-350/2 for 20 units receivers.
.SCS-350/4 for 40 units receivers.
. Charging time:1 hour~6 hours. |
|
| ¡¡ |
¡¡ |

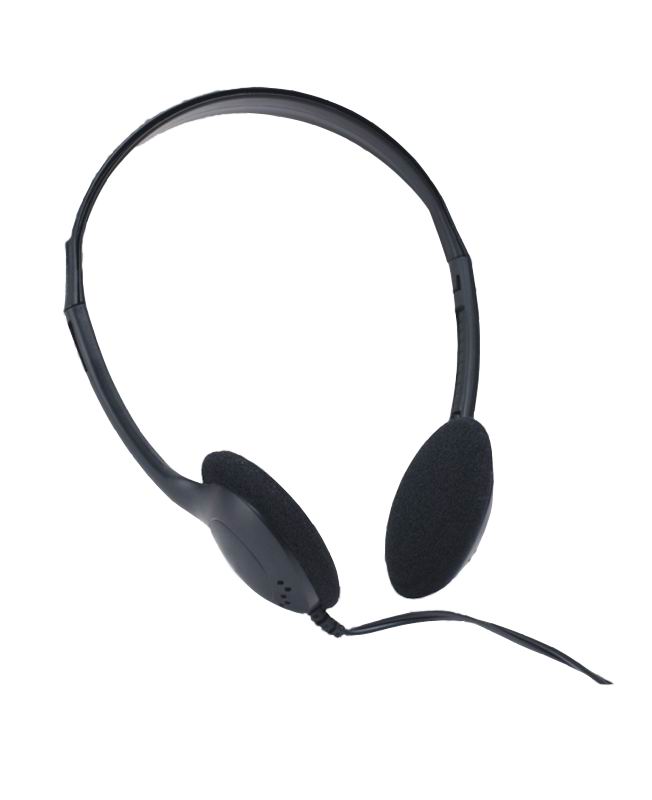

SCS-E3 Head set earphone feather:
.Working
with speaking units or IR receiver units
.Avoid
being interfered in conference
.Build-in
1.5 meter cable
.Hi-fi
audio quality |
|
|
¡¡ |
Model |
SCS-E3 |
Interface |
3.5mm mono connector |
Frequency response |
80Hz 2KHz |
Sensitivity |
90dB |
SNR |
>80dB |
Distortion |
<0.1dB |
Impedance |
32¦¸ |
Dynamic range |
>85dB |
Output power |
80mW |
|
| ¡¡ |
|
¡¡ |
| ¡¡ |
|
|
